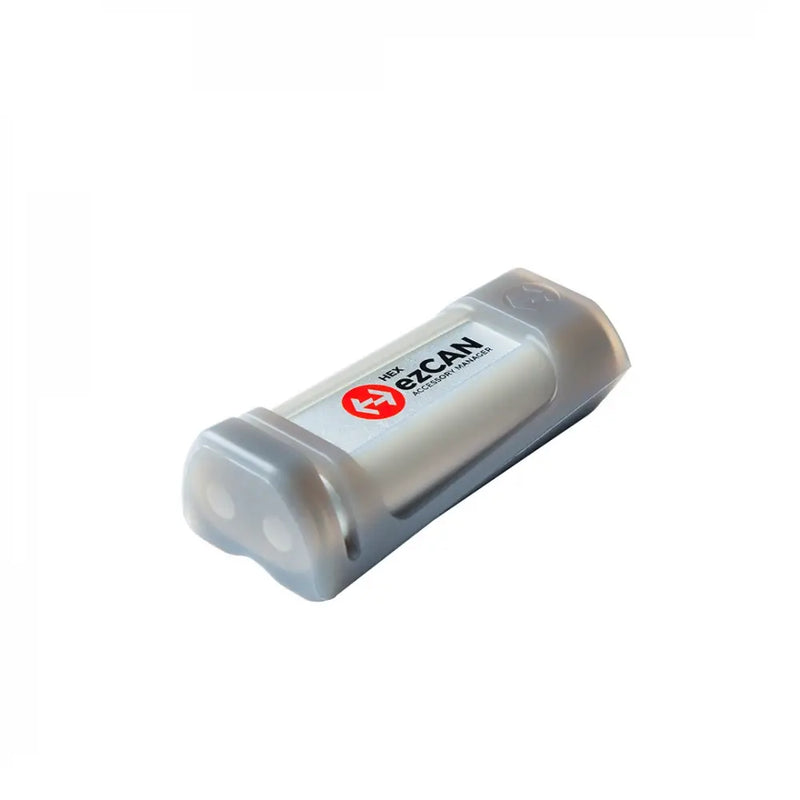

H1-EZS-009: The ezCAN Adventure Sleeve simply slips over the ezCAN II device providing an additional layer of protection from the elements but more importantly, allows for the ezCAN II device to easily sit or mount against the framework of the bike – thanks to its curved base and ergonomic design.
H1-DSW-001: With the HEX Up-Down switch Aux Lights can be toggled on and off from the bike controls, but brightness can only be adjusted using the software or the optional switch.
- This optional switch is an accessory for KTM ezCAN units which enables further control of Aux Lights on the move (toggle on/off and brightness control).
- This is only currently available for KTM devices. Does not work on ezCAN Gobi.
H1-KTM-004: This KTM splitter cable is for ezCANs “pre- ezCAN Gobi”. It allows ezCANs to be Daisy-chained.
H1-HD-009: This adapter allows the OLD style (pre- ezCAN Daytona) Harley Davidson ezCAN to be connected for use with 2021 model year bikes.
H1-EZS-002: Spare blanking plugs allow you to cover any unused ezCAN output channels. Comes as a pack of 2.
H1-KTM-003: This adapter allows the OLD style (pre-ezCAN Gobi) KTM ezCAN to be connected to the bike with the new red Euro 5 connector.
H1-EZS-005: You will find this harness useful if you want to measure the OE Horn signal on your KTM motorcycle.
H1-EZS-004: You will find this harness useful if you want to measure the OE Horn signal on your R1200 or F800 BMW motorcycle.
H1-EZA-001: Popular lights in the US are the Baja Squadron / Squadron Pro series. These adapters allow you to plug them directly into the ezCAN connectors (or ezCAN extensions).
H1-EZA-002: This adapter allows the ezCAN outputs to plug into a Denali B6 brake light.
H1-HD-008: Use the ezCAN Diagnostic Splitter Cable for Harley Davidson bikes to allow other products (such as the FuelPak autotuner) to access the bike's diagnostic port.
H1-HD-012: This Splitter Cable is for use with bike models supporting a Euro 5 Diagnostic Connector. Use the ezCAN Euro 5 Splitter Cable to allow other products (such as the FuelPak autotuner) to access the bike's Euro 5 Diagnostic Connector.
H1-HD-011: This Splitter Cable is for use with the HEX ezCAN II Daytona for Harley Davidson bikes. Use the ezCAN Harley Davidson Diagnostic Splitter Cable to allow other products (such as the FuelPak autotuner) to access the bike's 6-pin Deutsch Diagnostic Connector.
H1-UEA-001: The Universal splitter fits inline between the ezCAN and the CAN-bus connector allowing a second ezCAN to be connected for a daisy-chain connection.This splitter cable is compatible with the following ezCAN devices:
- ezCAN Gobi for KTM
- ezCAN Sahara for Honda
H1-EZS-003: You will find this product useful if you have lost the micro USB Dust Cover that came with your ezCAN.
- 2 x Micro USB Dust Covers
H1-EZS-007: You will find this product useful if you are making extension cables between your ezCAN and any accessory that has a MT 3-pin male connector such as the Denali D4 or D7 lights.
- 3 x Female Connectors
- 9 x Terminals
- 9 x Wire Seals
H1-EZS-008: You will find this product useful if you are making extension cables for your ezCAN or if you want to attach connectors to any accessory that will plug into any of your ezCAN output channels.
- 3 x Male Connectors
- 9 x Terminals
- 9 x Wire Seals
- 3 x Blanking Seals
H1-EXT-004: HEX ezCAN wiring harness extension Kit for ezCAN Gen II on BMW, KTM and Harley.This wiring harness kit provides an ezCAN user with everything needed to plug in front auxiliary lights, brake/tail lights, horn and other accessories to the ezCAN Gen II.Correct connectors are installed for direct plug and play functionality of Denali brand lights and horn. Kit includes the following complete harnesses with connectors for quick plug and play into ezCAN Gen II:
- 2x 1450mm (57 inches) aux light complete harnesses with Sumitomo connectors as used on popular driving lights such as the Denali brand
- 1x 500mm (19.5 inches) rear light harness with Sumitomo connector for Denali brand rear light
- 1x 1500mm (59 inches) complete harness with two-tab terminals to connect a horn such as the Stebel Nautilus (same as Denali Sound Bomb).
- Additional female ezCAN connectors that you can use if you want to shorten the provided harnesses.
- Heat-shrink to finish off sheath if you choose to shorten a harness.
- Male connectors to be used on your auxiliary lights and accessory wires so they plug directly into the ezCAN extension harness.
- Sheathing for finishing of wiring if you choose to shorten a harness.
H1-EZS-006: Splitter cable for connecting more than one accessory to a single channel output. A common example would be connecting two auxiliary lights to one ezCAN output.
H1-EZS-001: Attach these stubs to your accessories to connect your accessories to your ezCAN.
- 2 x Connector Stubs (2-wire pigtails)
- 2 x terminated wires (control signal for 3-wire loads)
- 2 x blanking seals
H1-EXT-001: Single extension harness providing a 1.5m extension between an ezCAN channel and an accessory (light).
H1-EZA-003: This adapter allows the HEX ezCAN outputs to plug into a Denali T3 Modular Switchback Signal Pod.
H1-EZA-014: Plug and Play – this splitter cable allows you to connect two Denali T3 Switchback Rear Turn Signal/Brake Light Pods, to three circuits of your HEX ezCAN Accessory Manager. This allows for the configuration of two ezCAN circuits for the indicators (one for the left and one for the right, T3 Switchback Light Pods), and a third circuit for both T3 Switchback Light Pods to be configured as a rear brake light.
- 2x Denali T3 Switchback Rear Turn Signal/Brake Light Pods, operating at both auxiliary turn signals and auxiliary rear brake lights.
H1-EZS-010: This Splitter Cable is for use with Husqvarna models where the ezCAN requires an additional headlight trigger input.
H1-EZS-011: This Splitter Cable is for use with bike models supporting a Euro 5 Diagnostic Connector where the ezCAN requires both a horn trigger input as well as an additional headlight trigger input.
H1-EZS-013: This Splitter Cable is for use with Yamaha Ténéré 700 models where the ezCAN requires an additional headlight trigger input. These adapter cables are generally used with the T7 models that are fitted with the monochrome grey instrument cluster.
H1-EZS-014: This Splitter Cable is for use with Yamaha Ténéré 700 models where the ezCAN requires an additional headlight trigger input. These adapter cables are generally used with the T7 models that are fitted with the monochrome grey instrument cluster.
H1-EZS-015: This Splitter Cable is for use with bike models supporting a Euro 5 Diagnostic Connector where the ezCAN requires a horn trigger input.
H1-EZS-019: This adapter cable is used to connect an ezCAN to a Euro 5 diagnostic port, where the Euro 5 diagnostic port is used as the source for the CAN-bus data.
H1-UEH-006: This adapter cable is used to connect an ezCAN to an OBD-II port, where the OBD-II port is used as the source for the CAN-bus data.
